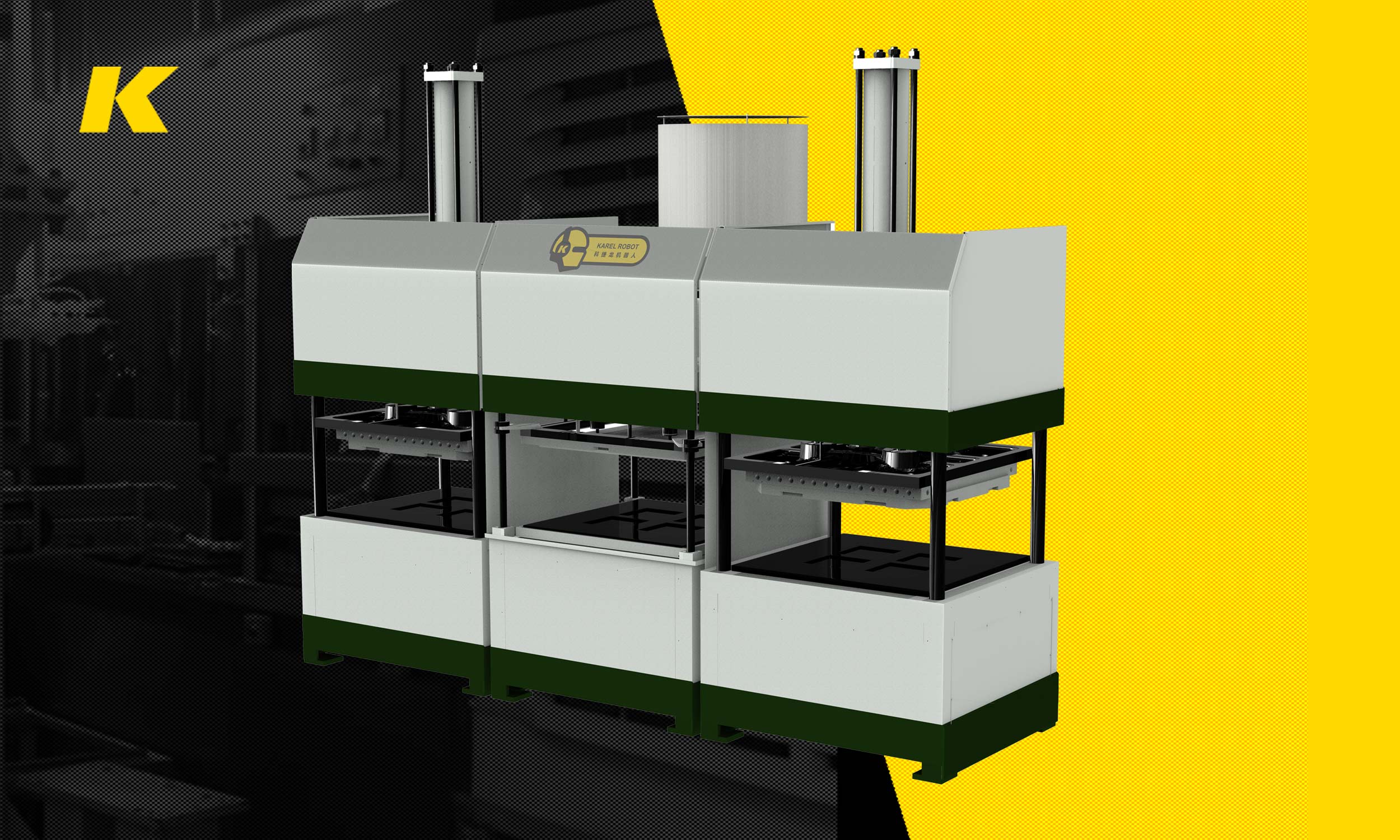

Grouting type semi-automatic paper molding machine
-
Grouting type semi-automatic paper molding machine
- Introduction
- Video
The material can be transferred manually or by Rectangular Coordinates robot arm and multi-joint robot.
（3D layout of equipment）
（3D three view of device）
1. The upper, middle, and lower plates of the hot pressing part are made of castings.
2. The parallelism between the upper plate and the lower plate can be adjusted to ensure the parallelism.
3. The guide column and the upper formwork lift and down at the same time. Without the support guide column, the thermal expansion can be reduced, resulting in the expansion and displacement of the upper formwork, resulting in the clamping of the upper formwork.
4. Adding a slurry storage tank with an automatic rotary mixing function.
5. The independent slurry suction tank is designed to increase the function of gas water separation.
